Product Classification
Submersible Pump
Best performance, long time service, lower noise Easy to install and service. Quick, simple and safe electrical connections M anifold allows for vertical or horizontal discharge Save time. lower service costs Built with check valve, by pass valve, vacuum valve For diesel, gasoline, kerosene, etc Vapor-free, suction head longer than suction pump.
Product Classification:
Submersible Pump
Production Description
Best performance, long time service, lower noise Easy to install and service. Quick, simple and safe electrical connections M anifold allows for vertical or horizontal discharge Save time. lower service costs Built with check valve, by pass valve, vacuum valve For diesel, gasoline, kerosene, etc Vapor-free, suction head longer than suction pump.
Technical Specifications
Rating Pressure | 0.1MPa |
Max. Flow Rate | 240L/min |
Speed | 2820RPM |
Voltage | 220V, 50Hz or 380V, 50Hz |
Current | 9A |
Power | 1.1Kw |
Ex-proof Class | 1P×6 |
Inlet | BSPR/NPT 1-1/2” |
Outlet | NPT2” |

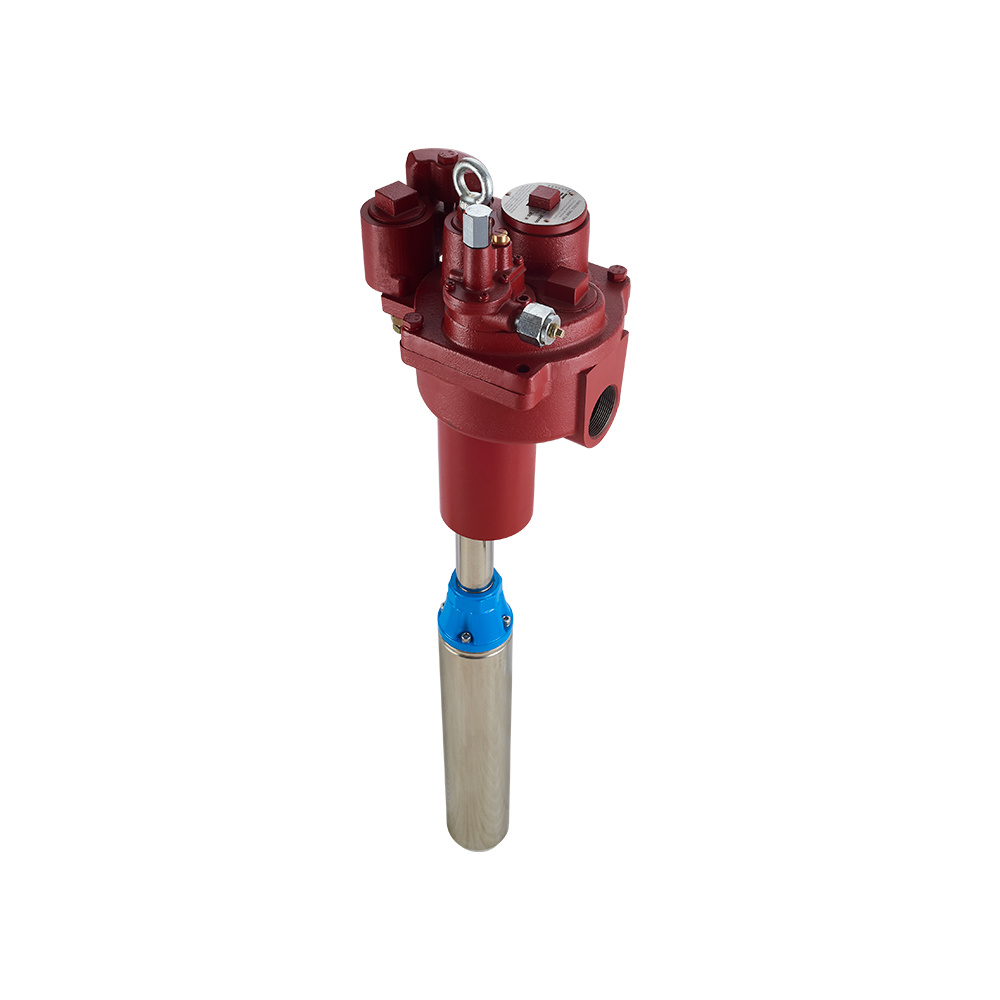

Submersible fuel pump is a high-efficiency pumping solution designed for the safe and continuous transfer of diesel, gasoline, and kerosene in both industrial and commercial fuel systems. Engineered for submerged installation, the submersible fuel pump ensures vapor-free operation, superior suction performance, and extended service life even in demanding environments. With a robust 1.1kW motor running at 2820RPM and a maximum flow rate of 240L/min, it provides consistent fuel delivery under 0.1MPa working pressure, maintaining stable output with low noise and minimal vibration.
The submersible fuel pump features advanced components such as an integrated check valve, bypass valve, and vacuum valve, effectively preventing backflow, ensuring smooth operation, and protecting the system from overpressure or dry running. Its explosion-proof design (IP×6 protection class) ensures safe operation when handling flammable fuels, while the manifold structure supports both vertical and horizontal discharge, offering installation flexibility across different systems.
Built with durable materials for long-term resistance to fuel corrosion, the submersible fuel pump reduces maintenance requirements and operating costs. Its quick-connect electrical system allows for fast, safe installation and servicing. Ideal for fuel stations, storage tanks, refineries, and mobile fuel systems, this pump delivers reliable performance, high energy efficiency, and stable operation for continuous fuel transfer applications.
